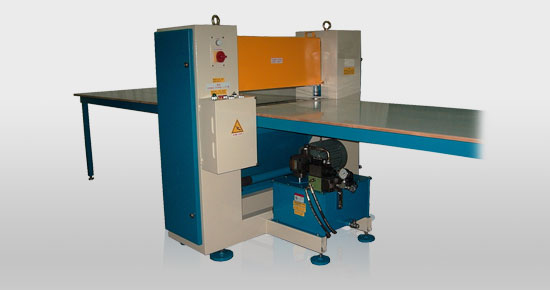

• It is applied to cut to desired length of bundles of veneers.
  • The knife for cutting is drived by two hydraulic cylinders.
  • No skillful operator is necessary.

Specification LG-W 800C
Veneer Height mm 75
Veneer Width mm 915
Veneer thickness mm 0.3 - 1.2
Total Power Supply kw 3.75 (5HP)
Main Voltage   as required
Hydraulic Cylinders   80Ø × 130s × 2e
Hydraulic Working Pressure Kg/cm2 100
Feeding End Table Ml x mw 2.45 × 0.98
Discharging End Table Ml x mw 2.24 × 0.98
Overall Length mm 5110
Overall Width mm 1610
Overall Height mm 1430
Machine Weight kgs 1230
*Technical data to change without notice
