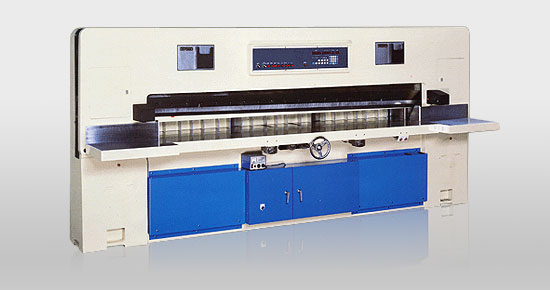

- Machine seat is constructed & combined by high strength casting operates stably & cuts exactly. Robust Construction ensures stable operation and exactly cut off.
- Dual worm gear, dual-arm cutting design for speedy and quick cutting.
- Specially designed powerful electromagnetic clutch avoids unwanted second-time knife cutting.
- 2000-point memory allows for free size-setting to increase cutting capacity.
- Special sizes and new-system sizes can be keyed-in during operation, convenient for the cutting of all kinds of material.
- New cutting size can be added to memory without changing the entire program.
- Hydraulic operation assures quiet cutting.
- Suitable for cutting paper, card, board, rubber, cork, veneer, leather and plastic foils.
![](images/titlte-s3.gif)
![](images/c4.gif)

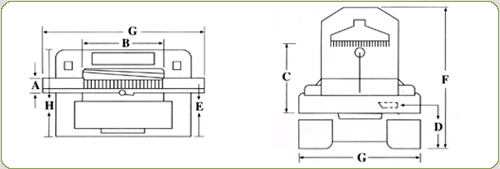

Specification | 2610CD | |
---|---|---|
A | Cutting Thickness | 110 mm |
B | Cutting Width | 2610 mm |
C | Cutting Length | 800 mm |
D | Front Table Length | 500 mm |
E | Table Height | 850 mm |
F | Total Machine Length | 2150 mm |
G | Machine Width | 3810 mm |
H | Machine Height | 1750 mm |
I | Electrical Supply | As required |
J | Net Weight | 5400 kg |
Blade Motor | 5 HP | |
Clamp Motor | 3 HP | |
Paper Feeding Motor | 1 HP |
*Technical data to change without notice
